Attribution and exclusion

Attribution is the process by which Harness FME measures the influence of a feature on a user metric and allows you to run accurate experiments. Attribution correlates events with one of the treatments of the Harness FME for which metrics are being calculated.

Harness FME combines event data you send to Harness FME with the assignment data collected by the getTreatment call of the FME SDK to determine whether the event was influenced by the feature. The correlation is done via the key (id) that is present in an impression (a record of which treatment was assigned to a key) and the key in an event.

If the timestamp in the event is later than the timestamp in the impression, the event is attributed to whatever treatment was assigned to the key specified in the event. Regardless of the specific mechanism by which you send events to Harness FME, those events must contain a key from the same domain (traffic type) for which you are calling getTreatment and an Epoch UTC timestamp in milliseconds.

For some methods of sending events, such as the FME SDK track method, those fields are populated automatically. For others, such as posting data to the events API, you must populate those fields yourself. Learn more about sending events to Harness FME.

Event attribution

FME's attribution functionality associates events with treatments to measure the relative performance of those treatments. Any event that occurs after the timestamp of the first impression a user generates for a Harness FME is attributed to the treatment that was assigned, and for measurement the user is grouped with all the other users who had treatments assigned by the same targeting rule.

The targeting rule is important because metric impact is only assessed between treatments that were assigned by the same rule. The rule is identified by the label field of the impression. Essentially a user’s events are attributed to a specific label/treatment pair.

The following example describes how Harness FME attributes events when a user's rule does not change during the version, which is the most common scenario.

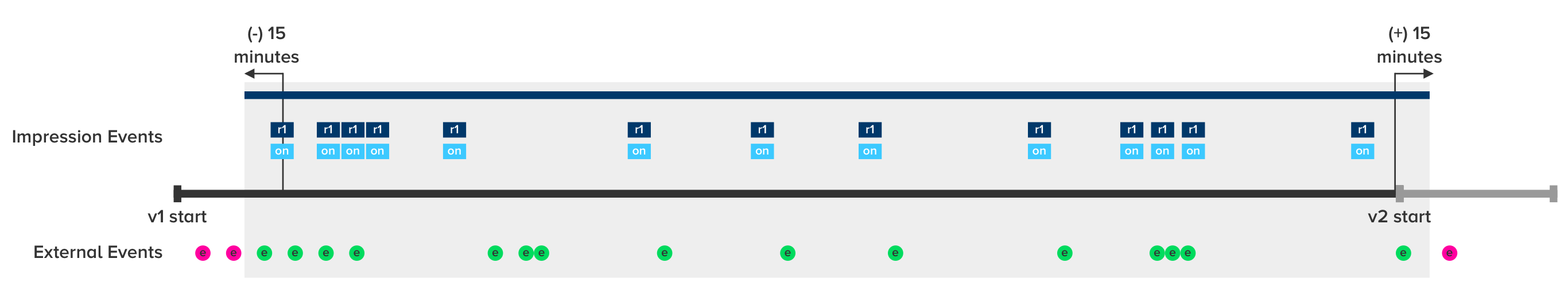

FME identifies when a user first is assigned a treatment, and attributes all events after that first impression to the treatment assigned. The following is an illustration of this attribution following a single user's activity.

• e is an event, such as a click event. Events are represented below the timeline of the version.

• r1 and on represent a user's impressions with the rule (r1) and the treatment (on). At these points, Harness FME is deciding whether a user is bucketed into a certain treatment based on the targeting rule you defined. In this example, all impression events in the timeline are for the same treatment and targeting rule.

The example in the timeline diagram shows a user's activity in your application. When calculating metrics, Harness FME includes the shaded region, which is the events from 15 minutes before a user's first impression to 15 minutes after the end of the version. The events highlighted in pink are included in this example.

note

If you want to set a different buffer time, you can reach out to support@split.io for help.

Potential complications

There are some situations where the attribution process described above must be modified to accommodate unusual circumstances.

Switching rules

Sometime after a treatment is first assigned to a user for a given version of a Harness FME version, a subsequent call to getTreatment for that user may use a different targeting rule to assign a treatment, which changes the measurement group to which that user belongs. For example, the value of a user’s attribute used in a targeting rule may have changed between the two calls, causing a different rule to apply.

A user’s behavior is measured as part of two different groups (and possibly even treatments; the change in the rule used may also have caused a change to the treatment assigned). The events occurring before the getTreatment call where a user switched rules are attributed to the former rule and treatment. The events occurring after the first getTreatment call where a user changes rules are attributed to the latter rule and treatment.

If the targeting rule used to determine the treatment changes, Harness FME counts that as one rule change, regardless of whether the treatment assigned to the user changes. For example, the value of an attribute being used in the rule changes and the user still receives the same treatment, despite the attribute value and rule changing.

In this case, Harness FME isolates the events and applies a 15-minute buffer to the first and last impression received for the unique rule and treatment combination. Specifically, 30 minutes are centered around the latter treatment assignment where events are attributed to both targeting rules and treatments.

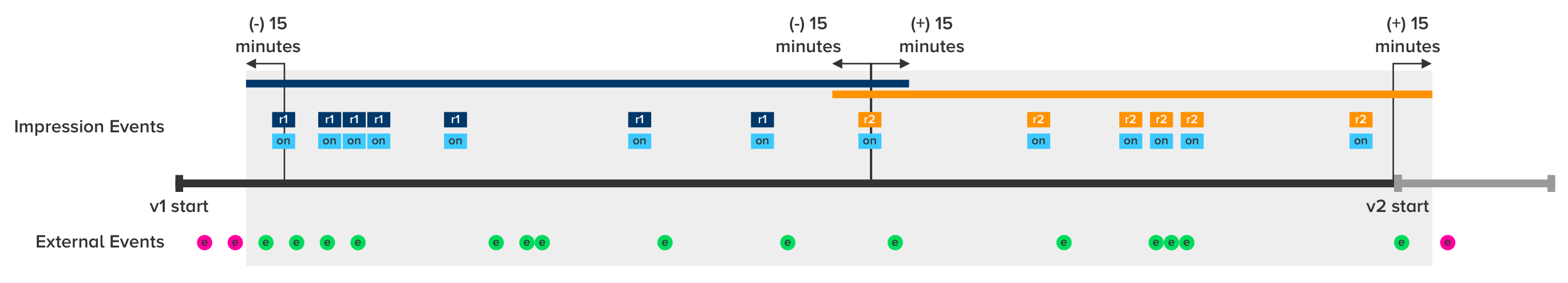

This example illustrates how Harness FME attributes events when a user's rule changes.

• e is an event, such as a click event. Events are represented below the timeline of the version.

• r1, r2, and on represent a user's impressions containing the rule (r1 or r2) and the treatment (on). At these points, Harness FME is deciding whether a user is bucketed into a certain treatment based on the targeting rule you defined. In this example, there are two unique combinations where the rule is changing from r1 to r2 while the treatment is not changing.

The example in the timeline diagram shows the user's activity in your application. When calculating metrics, Harness FME includes the shaded region when looking at targeting rule r1. The events from 15 minutes before the user's first impression to 15 minutes after the first impression for the second rule.

When isolating to r2, the same rules apply, include the events 15 minutes before the user's first impression to 15 minutes after the rule (in this example, version) change. The events highlighted in pink are not included in any rule analysis given that they fall outside the buffer windows.

Note that while the illustration shows a user receiving the same treatment after the rule change, the attribution process for when a user receives a different treatment due to the rule change is analogous, with events in the 30 minute buffer being attributed to the earlier rule and treatment and the subsequent rule and treatment.

Exclusions

Under certain circumstances, Harness FME will remove all of a user’s events from measurement for a particular Harness FME. This is referred to as excluding a user. This occurs because after switching multiple times, it is unclear which treatment is influencing a user’s behavior or to which measurement group they belong, so it is safer to exclude that data from metric calculations.

As stated above, if a user switches between targeting rules once, a user’s events are attributed to the most recent treatment and rule, both before and after the switch. However, if a user switches rules a second time, Harness FME excludes all of that user’s events from the Harness FME metrics. For example, perhaps the Harness FME is targeted by location and a user accesses your app from home, travels to a differently targeted location (switching once), and then returns home (switching for the second time). In this case, all of a user’s events would be excluded from measurement.

The number of users excluded from your analysis can be seen in the metric details and trends view in the Excluded column of the Sample population section.

Version change

Any changes to the definition of a Harness FME other than modifying tags or editing the description will trigger a new version in Harness FME with metric values reset to zero for that version. For example, increasing the percentage of users receiving the on treatment. By tracking version changes, Harness FME counts only the events relevant to a particular treatment, and treats each targeting rule as a distinct sample population to compare.

As the version is changed, Harness FME runs a final 15-minute calculation after the change so that you can revisit your results in the future.

Custom dates

It is possible to analyze data across feature flag versions by selecting the custom dates option. This allows combining multiple versions that are included in a time range. This is an advanced feature and there are some scenarios that may invalidate experimental results. For more information, head to the Selecting custom dates section of Applying filters.

Data retention

Harness FME retains the impression and event data by which we measure experiments for ninety days. If a version of a Harness FME is older than 90 days, Harness FME uses the last ninety days of data when calculating metrics for that Harness FME version.

warning

Be aware that if you trigger a recalculation of Harness FME versions that are older than 90 days, the metric data you’re currently looking at could disappear. You should instead share your results.

Metric calculation flexibility

FME's attribution model uses event timestamps to associate a user’s action with the treatment they were served prior to that timestamp. The events do not have to be delivered to Harness FME contemporaneously. This makes the system flexible enough to handle the fact that teams often realize during a feature release or experiment that they're interested in measuring metrics that were not defined in Harness FME at the beginning of the experiment.

• Events do not need to be sent from the FME SDK or synchronously when they occur. You may want to measure a feature with events from systems not directly associated with a feature flag. For example, you may have a backend order processing system with useful information about business events. As long as you have an EPOCH UTC msec timestamp of when the event occurred and the key for which getTreatment calls were made (the key with which you wish to associate the event), you can send the events to Harness FME anytime during the Harness FME version you are measuring. This allows us to receive data in batch and attribute them to experiments using the rules described above, that is, matching keys and the timestamp when the event occurred with whatever treatment was served to the key prior to that time.

• You can define a metric in Harness FME after an experiment is already running. Similar to the scenario above, you might have events that you have sent during an experiment but haven't defined a metric in Harness FME that uses those events. As long as you have been consistently sending Harness FME the events used in the metric definition, you can define that metric at any time during an experiment. When the metrics are next calculated, the newly created metric will reflect the impact of your experiment on that metric for the entire duration of the experiment.
